Our CP30 portable compactors are suitable for general and food waste, where environmental and hygiene requirements demand a sealed unit or where space is at a premium.With leak resistant seals, fast cycle time, high volume charge box, our portable waste compactors are the perfect choice to minimise your waste costs. Available in a range of colours, with clear operating instructions and health and safety stickers as standard. Easy to operate, safe to use and backed by a network of our own engineers to ensure maximum reliability.
| Compaction Force: | 28 Tonnes |
| Power Requirement: | 32A 3Ph + N + E Socket outlet fused at 32Amp D type with local 30 Milliamp RCD protection If you have an existing supply that doesn't match this specification, please contact technical@capitalcompactors.co.uk to check if it's usable or discuss a solution) |
| Motor: | 7.5kW |
| Noise Level: | 67dB at 3m From Unit |
| Cycle Time: | 41 Seconds |
| Charge Box Volume: | 1900mm x 1100mm (2.2m3) |
| Volume Per Stroke: | 1.3m3 |
| Ram Depth: | 600mm |
| Ram Diameter: | 2 x 110mm |
| Running Hydraulic Pressure: | 2000psi |
| Pinning Hydraulic Pressure: | |
| Overall Length: | 6811mm |
| Overall Width: | 2360mm |
| Overall Height: | 2523mm |

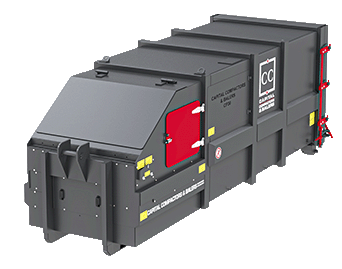

| Variant Shown: | Enclosed Hopper |
Please Note: The details provided in our specification sheets are for your general information and use only. They are subject to change due to the continual design and build development.
