Our CP10 portable compactors are suitable for general waste, where environmental and hygiene requirements demand a sealed unit or where space is at a premium. With leak resistant seals, fast cycle time, high volume charge box, our portable waste compactors are the perfect choice to minimise your waste costs. Available in a range of colours, with clear operating instructions and health and safety stickers as standard. Easy to operate, safe to use and backed by a network of our own engineers to ensure maximum reliability.
| Compaction Force: | 20 Tonnes |
| Power Requirement: | 32A 3Ph + N + E Socket outlet fused at 32Amp D type with local 30 Milliamp RCD protection If you have an existing supply that doesn't match this specification, please contact [email protected] to check if it's usable or discuss a solution) |
| Motor: | 5.5kW |
| Noise Level: | 67dB at 3m From Unit |
| Cycle Time: | 44 Seconds |
| Charge Box Volume: | 1490mm x 800mm (1.6m3) |
| Volume Per Stroke: | 1.0m3 |
| Ram Depth: | 530mm |
| Ram Diameter: | 2 x 90mm |
| Running Hydraulic Pressure: | 2000psi |
| Pinning Hydraulic Pressure: | |
| Overall Length: | 4760mm (or 7047mm with Safety Enclosure in place) |
| Overall Width: | 1880mm (or 2160mm with Safety Enclosure in place) |
| Overall Height: | 2104mm (or 2180mm with lid open) |

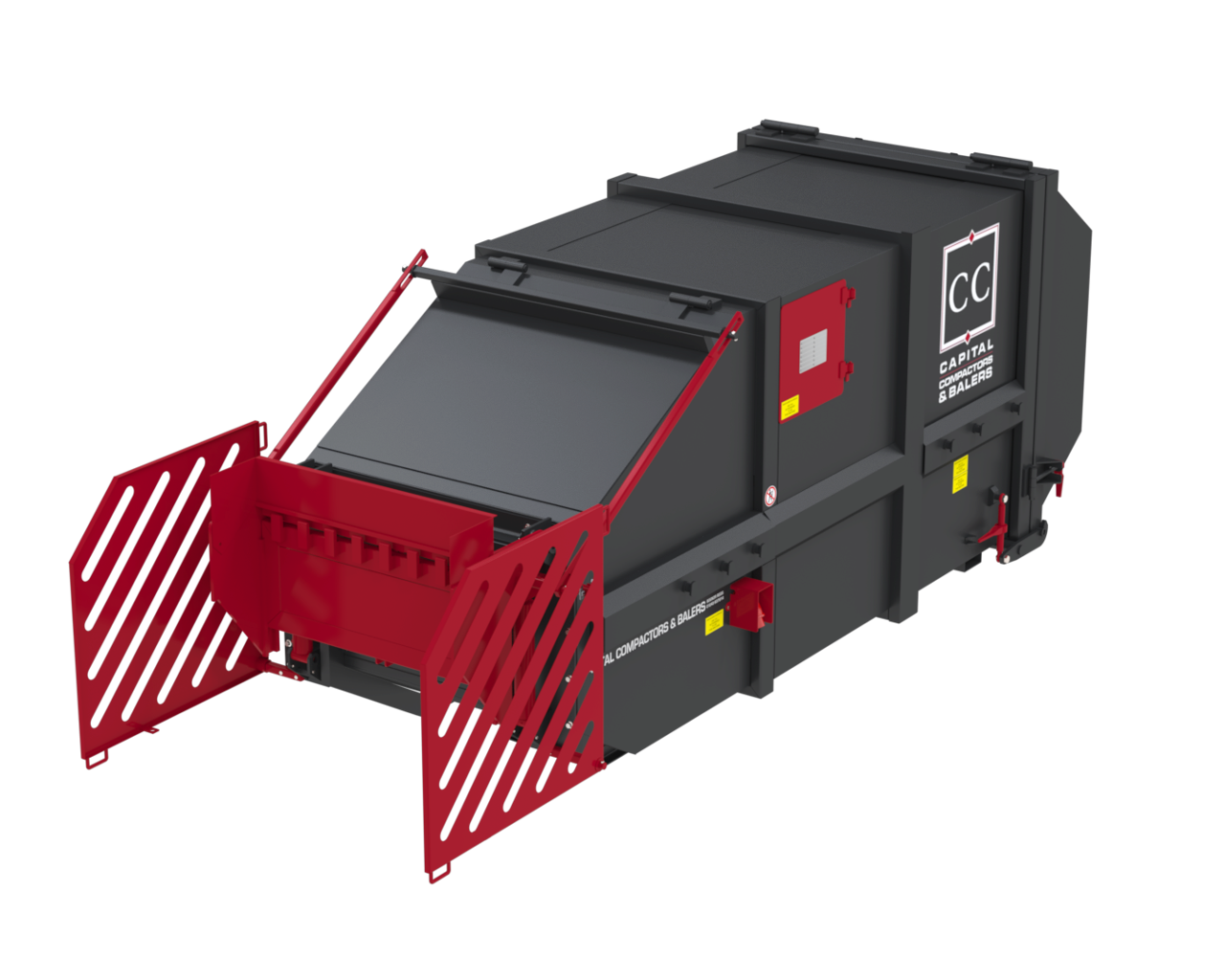

| Variant Shown: | Comb Bin Lift & Personnel Safety Enclosure |
Please Note: The details provided in our specification sheets are for your general information and use only. They are subject to change due to the continual design and build development.
